Intellinova® Parallel EN is a high-performance online system, ideally suited for condition monitoring of industrial equipment with high availability demands. This robust monitoring unit is designed to manage demanding industrial environments and complex operating conditions in all industries.

Intellinova Parallel EN continuously monitors your critical equipment, capturing relevant events without delay. Four, eight, sixteen or thirty-two channels can be used for vibration and/or shock pulse measurement with the DuoTech accelerometer. Four, eight, or sixteen RPM channels can be utilized for data acquisition on machinery with complex drives, even under variable operating conditions. The system tracks and manages changes in process and operating conditions, providing a reliable snapshot of equipment condition for entire machines. Measurement assignments can be set up to trigger individual channels or multiple system units in parallel and synchronously.

Implementing HD condition monitoring technologies, the system is the ideal choice for gearboxes – including planetary gears – and low-speed applications (from below 0.1 RPM) such as agitators, crushers, or conveyors. Advanced functionality makes the system ideal where measurement is time-critical due to short process cycles, e.g., rolling mills, railcar dumpers, press nips, or winders. Further examples include lifting and hoisting equipment such as cranes or drop sections. Intellinova Parallel EN is also suitable for more straightforward applications like motors, pumps, and fans.

Intellinova Parallel EN can be run alongside its siblings in the Intellinova family of online systems in an integrated system, or as stand-alone units.

"We continue to invest in SPM equipment to increase plant availability by avoiding bearing damage that may develop into failure."

Andreas Lindblom, Maintenance Manager mechanical workshop, Södra Cell Värö (Using Intellinova Parallel EN)

New arrival:

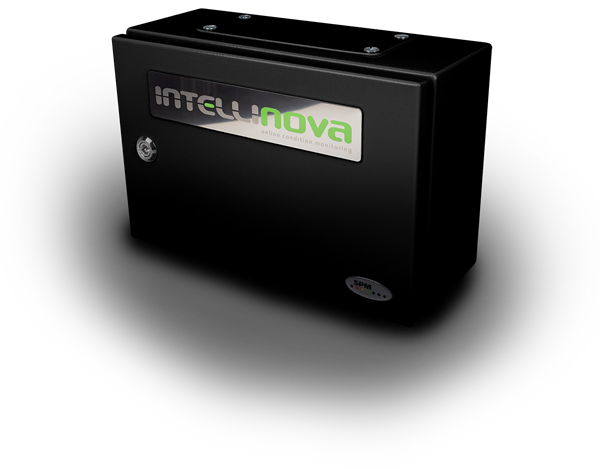

Four-channel version

The new Intellinova Parallel EN version with four channels is the perfect combination of powerful features and first-class performance.

  • Ideal for compact machinery.

  • Next-generation digital platform technology.

  • Excellent computation capacity.

  • Cost-effective installation in tight locations.

  • Wi-Fi accessory available.

SUPREME EFFICIENCY

Intellinova Parallel EN combines the most sophisticated measuring and visualization technologies available to ensure that even the most complex machines are monitored effectively.

PERFECT TIMING

With parallel vibration or shock pulse measurement on up to thirty-two channels, the system is a perfect fit where short process cycles make condition measurement time-critical.

VERSATILE AND POWERFUL

Utilizing the patented HD technologies, Intellinova Parallel EN provides outstanding performance and exceptional flexibility for monitoring vibration, bearing condition, and lubrication.

NEED AN EX VERSION?

Intellinova Parallel EN Ex is an advanced online system, intended for use in potentially explosive environments, for continuous monitoring of machine condition. Industries such as oil and gas, offshore, petrochemical and sugar plants are a few examples where Intellinova Parallel EN Ex is the ideal condition monitoring solution.

Want to know more about Intellinova Parallel EN?

By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.

Features



Supreme condition monitoring efficiency

Intellinova Parallel EN continuously monitors your critical equipment, capturing relevant events without delay. Four, eight, sixteen, or thirty-two channels can be used for vibration and/or shock pulse measurement with the DuoTech accelerometer. Four, eight, or sixteen RPM channels can be utilized for data acquisition on machinery with complex drives, even under variable operating conditions. For those requiring a more flexible solution, Intellinova Parallel EN with sixteen channels is available as a portable option – ideal for demos or test installations that require the same high-performance solution as the original version.

The system tracks and manages changes in process and operating conditions, providing a reliable snapshot of equipment condition for entire machines. Measurement assignments can be set up to trigger individual channels or multiple system units in parallel and synchronously. The Condmaster diagnostic and analysis software offers user-defined filter settings, live spectrums, and live views of the state of all connected devices.

Measurement technologies

Intellinova Parallel EN implements the most sophisticated and efficient technologies available for monitoring vibration levels, bearing condition, and lubrication effectiveness:

  • HD ENV, high definition vibration enveloping technology for detection of early-stage gear and bearing faults providing crystal clear spectrums and time signals
  • SPM HD, high-definition shock pulse monitoring technology for measurement with supreme signal-to-noise performance and very high resolution
  • SPM LR/HR HD, shock pulse measurement method
  • Broadband vibration measurement according to ISO 2372 or ISO 10816
  • FFT with machine fault symptom evaluation
  • User-defined measurements via analog inputs or OPC, e.g., pressure, flow, load, etc.

TYPICAL APPLICATIONS

Wind turbines
Rolling mills
Railcar dumpers
Converters
Agitators
Crushers
Conveyors
Press nips
Winders
Cranes
Drop sections

Technical overview

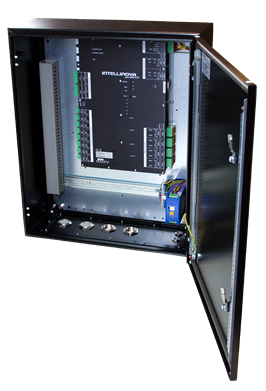

Intellinova Parallel EN is a powerful measuring system for continuous monitoring of machine condition. The cabinet, intended for wall mounting, is robust and sealed for use in harsh environments. The system unit INCEN16 can be mounted in a 19 inch rack mounting for space-preserving installation of multiple units.

Characteristics INSEN4 INSEN8* INSEN16* INSEN32
 Powder-coated steel cabinet 360x240x155 mm
(14.2x9.4x6.1 in)
400x400x210 mm
(15.7x15.7x8.3 in)
500x600x210 mm
(19.7x23.6x8.3 in)
500x600x210 mm
(19.7x23.6x8.3 in)
 Stainless steel cabinet 600x600x210 mm
(23.6x23.6x8.3 in)
 Rack (19 inch) 482x132(3U)x365 mm
(19x5.2(3U)x14.4 in)
482x132(3U)x365 mm
(19x5.2(3U)x14.4 in)
 System unit 268x158x43 mm
(10.5x6.2x1.7 in)
288x230x40 mm
(11.3x9.1x1.6 in)
275x400x40 mm
(10.8x15.7x1.6 in)
System unit for INSEN16 x 2
Measuring channels** 4 8 16 32
Analog inputs 2 2 4 8
RPM inputs 4 4 8 16
Digital inputs/outputs 2/2 2/2 4/4 8/8

*) Also available in portable version in a MIL standard plastic carrying case with connectors, internal measuring cables, and power supply unit.
**) Both vibration and shock pulse measurements can be performed using DuoTech® accelerometers.
