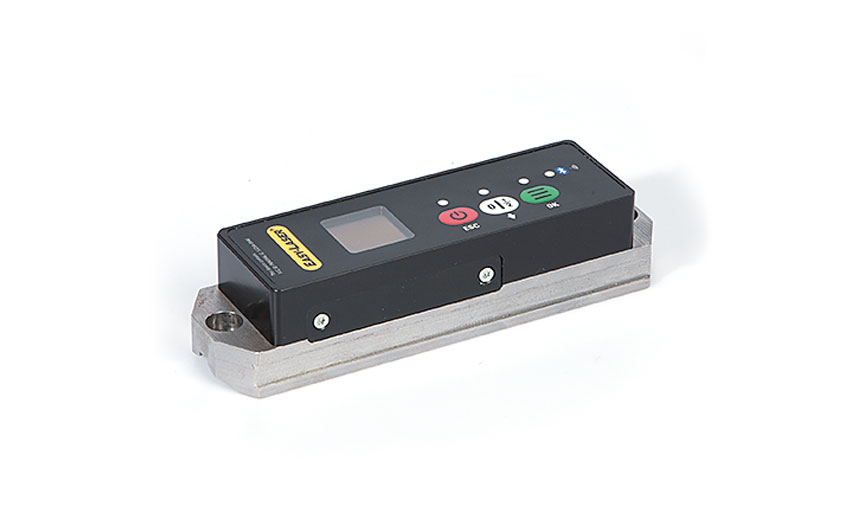

Easy-Laser E290 - Digital level

With the Easy-Laser® E290 Digital precision level, you get new possibilities for aligning your machinery. Use it as a separate tool, or add it to your laser system.

Digital levels are extremely useful tools for setting-up and aligning most types of machine, for example, levelling machine tables, rolls, bases, etc. Other areas of use include checking straightness, flatness and parallelism.

Easy-Laser® E290 offers the possibility of documenting the work, by wirelessly connecting to your Easy-Laser® alignment system. Today, documentation is a common client requirement.

E290 is the perfect addition to laser based alignment systems and is an investment that can be recouped quickly thanks to the broad areas of use. Accuracy is guaranteed by the precision-ground, hardened steel base. Easy-to-read OLED display and a rechargeable battery make it easy to use. Two mounting holes allow for your own adaptations and fixtures.

Connect to a separate display unit

Using a separate display unit (accessory) makes it all even easier, as you can read off and follow the adjustment at the precise point on the machine where the adjustment is made. The measurement values can be documented and transferred to PC, for further completion of a measurement report.


Digital and graphical read-out on Easy-Laser® display unit and iPhone/iPod touch.

Technical data

Other receivers (digital)

Name: Digital precision Level E290
Part number: 12-0846
Resolution: 0.01 mm/m (0.001°)
Range: ± 2 mm/m
Measurement accuracy: Better than ± 0.02 mm/m
Type of display: OLED
Communication: BT wireless technology
Environmental protection: IP class 67
Operating temperature: −10 to 50 °C
Internal battery: LiPo
Material: Anodized aluminum, ABS plastics
Dimensions (WxHxD): 149x40x35 mm [5.9x1.6x1.4”]
Weight: 530 g [18.7oz]
